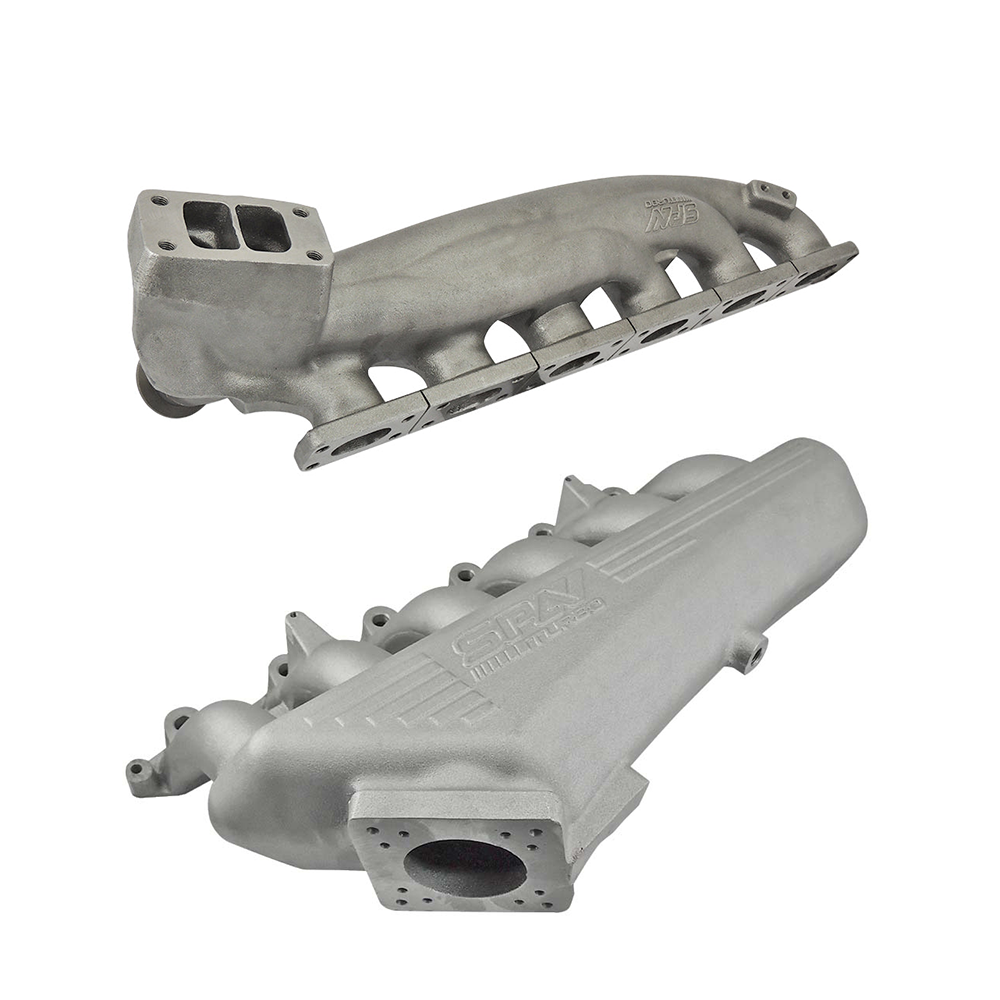

SPA Performance brings another great news for BMW lovers! The new turbo manifold for E36 body, now in the top mount twin scroll version and with V-Band 44/45mm wastegate flange, ensuring maximum flow and boost control for your project.
Application: BMW E36 and E46 body (M50 / M50 / M52 / M54 / S50 / S52 engines)
Turbocharger position: Top mount
Turbine housing flange: T3
- Wastegate flange: V-Band 44/45mm
Runners internal diameter: 40mm
Material: Cast iron
ATTENTION: non compatible with stock air conditioning.
- Turbo Flange Bolt Specs: T2 turbo flange bolt holes: M8x1.25; T3/T4 turbo flange bolt holes: M10x1.5; Wastegate flange bolt holes (if applicable): M8x1.25
CAST ALUMINUM INTAKE MANIFOLD OEM THROTTLE
SPA Turbo's intake manifold was designed for upgrades builds, having a bigger plenum volume, which, along with the tapered runners design, it will handle higher airflow numbers and it is the perfect solution for those who wants high performance and durability, guaranteed by the cast aluminum construction.
Application: BMW E36 and E46 body (M50 / M50 / M52 / M54 / S50 / S52 engines)
Number of injectors: 6
Fuel rail: stock (not included)
Fuel rail inlet/outlet: stock
Throttle body bolt hole pattern: stock (325 and 328)
TBI mount: side
Max working capacity: 10bar (145psi)
- Internal volume: 5,43L
Material: Cast aluminum
